Dislocations, the driving force behind plastic deformation

Understanding the mechanical properties of metals requires a study of dislocations. These are linear (one-dimensional) defects in the crystal lattice, consisting of a misalignment of atoms relative to their ideal, ordered configuration.

While the term "defect" may sound inherently negative, dislocations are what actually enables plastic deformation in the first place. At the macroscopic level, they are also responsible for properties essential to their use, such as ductility and malleability. Without dislocations, deforming metallic materials would require extremely high mechanical stresses, making most industrially relevant forming processes impossible, or at the very least extremely difficult to carry out.

Deformation mechanisms, the role of dislocations, and their types

In other words, dislocations are what give metals their ability to undergo plastic deformation. The lattice deforms permanently through a process called slip, the sliding of crystallographic planes, made far easier by the presence of these defects.

Not all dislocations are equal and they are classified mainly by the geometry of the lattice distortion they produce. In theory, there are two fundamental types of dislocation, but the most common configurations in real materials are mixed dislocations, which combine the first two types:

• Edge dislocation: defined by the insertion of an extra crystallographic half-plane within the lattice. The Burgers vector, which specifies the magnitude and direction of the distortion, is perpendicular to the dislocation line.
• Screw dislocation: can be visualized as a helical ramp produced by a shear stress that displaces one portion of the crystal relative to the other. In this case, the Burgers vector is parallel to the dislocation line.
• Mixed dislocation: the most common configuration in real materials, combining both edge and screw components. It represents, in effect, a more or less complex combination of the first two forms.

Dislocation theory, now strongly supported by extensive experimental evidence, rests on three central themes that explain how dislocations affect crystal mechanics and a metal's formability:

• the atomic-scale mechanisms of slip
• the interaction between dislocations and microstructural barriers
• the evolution of defect density associated with work hardening

These three aspects describe, respectively, how dislocations move, how their motion is obstructed, and how their density evolves during plastic deformation.

1. Atomic dynamics and slip systems

Plastic deformation in crystalline metals does not occur through random displacement, but through an ordered process known as slip.

In an ideal crystal lattice (free of lattice defects) plastic deformation would require the simultaneous breaking of atomic bonds along a shear plane. The theoretical shear stress for a perfect crystal may be of the order of several gigapascals. In reality, the presence of dislocations allows slip to occur through progressive local rearrangement of atomic bonds, at considerably lower stress levels.

This process is similar to the movement of a caterpillar, or to pushing a wrinkle across a carpet: the dislocation moves along the slip plane in small "steps," one lattice spacing at a time, reducing the stress required to activate deformation to just 5–10 MPa (again, for common steels).

In short, the formability of a metal is strongly influenced by the mobility of these defects within the metal's crystalline matrix: the more readily dislocations can move, the more easily the material can undergo plastic deformation.

However, dislocations do not move randomly but rather follow preferential paths that minimize atomic distortion during motion. The result is a slip system, in turn defined by a slip plane and a slip direction.

Let’s define these elements:

• Slip plane: usually the crystallographic plane with the highest atomic density (planar density) and the greatest interplanar spacing (the physical distance separating two parallel, adjacent planes of atoms within a crystal).
• Slip direction: the direction within the slip plane along which atoms are most densely packed (maximum linear density).

One quantity that characterizes the nature of a dislocation and its impact on the crystal structure is the Burgers vector, mentioned earlier. This vector indicates the slip direction of the crystal and the magnitude of the local plastic deformation: its direction corresponds to the slip direction of the dislocation, while its magnitude equals the smallest lattice translation vector in that direction.

The number of active slip systems determines a metal's plastic formability. For the most common crystal lattices, for example:

• Face-centered cubic lattice (e.g., copper, aluminum, austenitic steel): has 12 slip systems on very densely packed planes, ensuring high ductility even at low (cryogenic) temperatures.
• Body-centered cubic lattice (e.g., ferritic steel): has up to 48 slip planes, although only 12 are dominant at room temperature; these planes are not as densely packed as in the face-centered cubic lattice. As a result, dislocation motion is more difficult and strongly temperature-dependent, a phenomenon that contributes to the ductile-to-brittle transition.
• Hexagonal close-packed lattice e.g., magnesium, zinc, and alpha titanium): generally offers fewer easily activated independent slip systems than FCC metals at room temperature, although the active systems depend strongly on the specific material. This generally limits cold formability, particularly in metals such as magnesium and zinc.

2. Interaction with lattice barriers and obstacles

Dislocations constantly interact with other lattice defects, which act as obstacles to their motion and thereby increase the material's strength. These defects include:

• Grain boundaries: two-dimensional barriers where slip planes undergo a discontinuity. During deformation, dislocations propagate until they meet physical obstacles, such as grain boundaries, which are among the most effective barriers: because adjacent grains have different crystallographic orientations, a dislocation reaching the boundary must change direction or stop, owing to the discontinuity of the slip planes.

When a dislocation encounters a grain boundary, its motion stops, leading to the phenomenon of pile-up. A fine-grained material, having a greater grain-boundary surface area per unit volume, presents a very large number of obstacles to dislocation motion, thereby increasing the material's mechanical strength in accordance with the Hall-Petch relationship.

The Hall-Petch relationship states that the yield strength of a polycrystalline metallic material increases as its microstructure becomes finer, that is, as the size of the crystal grains decreases. The smaller the grains, the greater the force required to deform the material.

• Solute atoms (solid solutions): foreign atoms (interstitial, such as carbon, or substitutional, such as nickel) generate stress fields that "pin" dislocations, requiring greater stress to set them back in motion.
• Precipitates: fine second-phase particles dispersed in the matrix hinder dislocation motion. When particles are non-shearable, dislocations may bypass them (the Orowan mechanism), leaving behind dislocation loops that further increase strength.

3. Multiplication, work hardening, recovery, and recrystallization

Dislocations play a fundamental role in the process of work hardening.

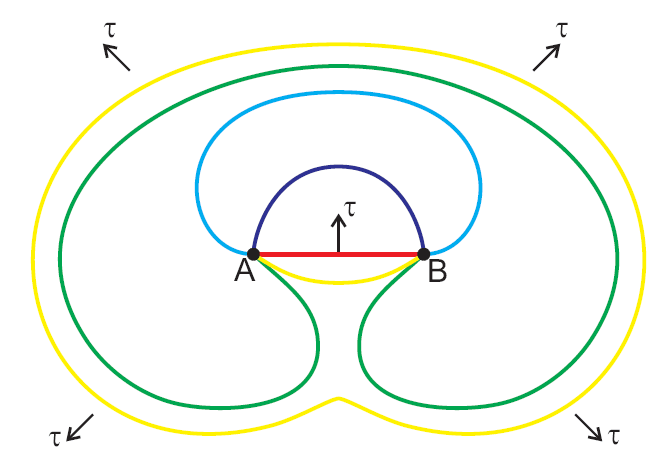

During plastic deformation, dislocation density does not remain constant but generally increases substantially. This multiplication occurs mainly through mechanisms such as the Frank-Read source, whereby a dislocation line pinned at two obstacles bows outward under stress, progressively forming a loop—somewhat like a growing bubble or ring—that eventually detaches, allowing the source to generate additional dislocation loops.

As deformation proceeds, this mechanism steadily increases dislocation density. The resulting proximity between dislocations strengthens the repulsive forces between them, causing mutual interference that makes further deformation increasingly difficult.

By Jntf - Own work, CC BY-SA 3.0

https://commons.wikimedia.org/w/index.php?curid=7501825

In other words, the greater the deformation already imposed, the greater the stress required to produce more of it. This is precisely the basis of work hardening. At the macroscopic level, the increase in dislocations raises the yield strength and hardness, at the expense of the remaining formability, which drops sharply. For example, dislocation density can be as low as 10³–10⁴ per mm² in annealed steels, but after heavy plastic deformation it can rise to around 10⁹–10¹⁰ per mm².

Annealing is in fact the heat treatment used to eliminate or reduce the effects of work hardening resulting from cold plastic deformation. This process uses thermal energy to bring the material back toward a state of greater thermodynamic stability, restoring its formability.

Depending on temperature and holding time, two main stages of property restoration can be distinguished: recovery and recrystallization.

• Recovery: this treatment takes place by heating the metal below the recrystallization temperature; dislocations rearrange into lower-energy configurations, reducing residual stresses with little or no significant change in hardness and mechanical strength.
  • → Physical mechanism: driven by thermal agitation, atoms diffuse from high-energy positions toward more stable configurations. Dislocations rearrange into lower-energy structures, reducing internal stresses.
  • → Effects on properties: during recovery, hardness and mechanical strength do not change significantly. However, a sharp reduction in residual stresses is observed, along with partial recovery of physical properties such as electrical and thermal conductivity.
  • → Examples: in bronzes, heating between 250 °C and 300 °C induces recovery, relieving stresses without excessively reducing hardness and strength.
• Recrystallization: above a material- and process-dependent recrystallization temperature, often roughly 0.4–0.5 times the absolute melting temperature (Tm, in kelvin), new, strain-free equiaxed grains nucleate and grow. Once recrystallization is complete, work hardening is largely removed and ductility is substantially restored. Its key features are:
  • → Physical mechanism: the original, deformed and elongated grains begin to transform into a new set of equiaxed, strain-free grains through processes of nucleation and growth.
  • → Effects on properties: this treatment causes a sharp drop in hardness and mechanical strength, but allows ductility to be fully recovered, along with the capacity to undergo further plastic deformation.
  • → Critical parameters: recrystallization is favored by a high initial degree of work hardening. The greater the deformation undergone, the lower the temperature needed to trigger the process, and the finer the resulting grain size.

Sources and technical references for further reading

• Boniardi, M. V., & Casaroli, A. (2017, 2022). Metallurgia degli acciai - Parte prima. Esine (BS): Lucefin/Trafilix S.p.A.
  • → Note: covers the physics of metals, line defects (dislocations), strengthening mechanisms, and phase diagrams.
• Boniardi, M. V., & Casaroli, A. (2022). Metallurgia degli acciai - Parte seconda. Esine (BS): Lucefin S.p.A. / Trafilix S.p.A.
  • → Note: focuses on mechanical testing (tensile, hardness, impact, fatigue) and the various families of structural steels.
• Nicodemi, W. (2000, 2007). Metallurgia - Principi generali. Bologna: Zanichelli.
• Callister, W. D., & Rethwisch, D. G. (2018). Materials Science and Engineering: An Introduction (10th ed.). Hoboken, NJ: John Wiley & Sons, Inc.

This article was written by Ing. Sergio Rusconi, mechanical engineer and Technical Manager with extensive experience in wire drawing and sheet metal machinery. A regular contributor to Expometals, he specialises in in-depth technical analysis of industrial processes.
